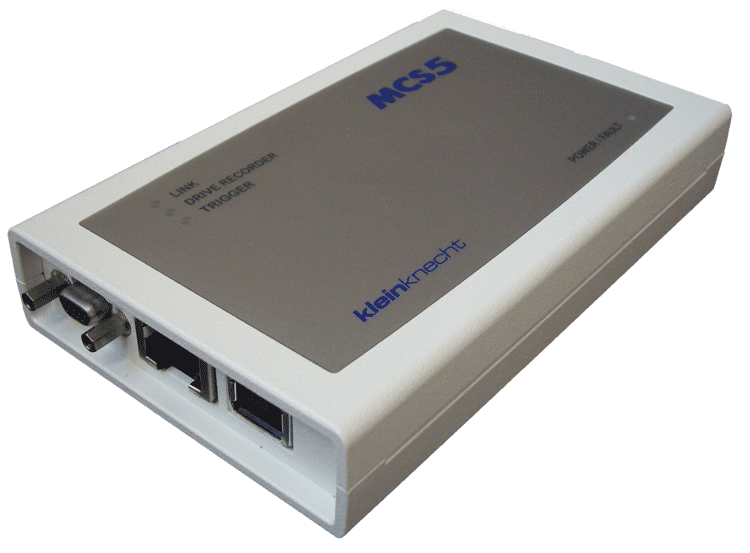

In addition to the traditional interfaces
of it's predecessor systems the new generation MCS5 now
also incorporates JTAG-OCDS
or AUD interfaces for ECU architectures
based Infineon TriCore or RENESAS SH mircrocontrollers.
These high speed interfaces are ideally suited to meet the
advanced requirements for high speed data acquisition, fast
in-system FLASH programming and for very low latency communication
cycles.
The MCS5 combines this versatile ECU calibration interfaces
with powerful data recording capabilities. Virtually any
number of signals from any source can be stored into a circular
buffer of up to 16 GB size at speeds of 10 MB/s.
The circular buffer can be emptied at
any time - even while the recording is in progress, to allow
data recordings without gaps over very long periods. Retrieval
of recorded data over LAN or USB2.0 is at speeds of 300
MB/minute. Smart on-the-fly data processing allows previews
of the entire recording to be uploaded in seconds. The recorder
is fail-safe even in case of power loss and is auto-resuming
when power returns.
|
 |
Also new on board are Analog
and Digital I/O ports. These resources may serve
as complementary data acquisition input channels or they
can be interfaced with the MATLAB/Simulink®
run-time system.
In a special operating mode the resources are dedicated
to the new CrankAnalyzer
feature.
Built around the Freescale MPC5200,
the MCS5 delivers a performance of 760 MIPS, power enough
to concurrently serve as a platform to run even
very complex MATLAB/Simulink/RTW generated S/W modules.
A comprehensive and easy-to-use Development Environment
for small models (up to 20 I/Os) is supplied free of charge.
|
| |
| Technical Data |
| |
• 400 MHz / 760 MIPS Freescale
MPC5200 PowerPC
• on-chip double precision Floating Point Unit, 128 MB RAM
• VxWorks 5.5.1 Real Time Operating System
• Dimensions (mm): 110L x 75W x 22H
• Temp. range: -40 to +85 °C operating
• Power Supply: 4V to 60V
• Power Dissipation: max. 2.9W |
| |
| Display |
| |
| • Status LEDs |
| |
| Interfaces to Host-PC |
| |
• Ethernet 10/100
• USB 2.0 |
| |
| Network Functionality |
| |
• DHCP server or fixed IP Address
Support
• Auto MDI / MDIX crossover
• TCP/IP over USB |
| |
| DriveRecorder |
| |
• High Speed 1GB Flash Drive
(optional: 16GB; 8GB linear, 4GB ring buffer, 4GB user Network
drive)
|
| |
| Interfaces to peripherals |
| |
• 2 x RS-232
• 2 x CAN 2.0B, max. 1 Mbps
|
| |
Highspeed Interface to
based ECUs |
| |
• Uses the On Chip Debug Support
(OCDS) protocol over JTAG or DAP pins
• High throughput in regard with burst data transfers (calibration
data downloads, on-chip FLASH progamming)
• High bandwidth data acquisition at sub-millisecond sampling
rates
• Ultra low latency data exchange for bypass Rapid Prototyping
|
| |
Highspeed Interface to
based ECUs |
| |
• Uses the Advanced User Debug
(AUD) protocol
• High throughput in regard with burst data transfers (calibration
data downloads)
• High bandwidth data acquisition at sub-millisecond sampling
rates
• Ultra low latency data exchange for bypass Rapid Prototyping
|
| |
| Analog and Digital
I/O |
| |
• 8 x Analog Inputs 0..5V, 12
Bits (up to 100kSps or vs. crank angle at 0.5° resolution)
• 8 x Digital 3.3V/5V bidirectional (up to 10MHz or vs. crank
angle at 0.05° resolution)
• shaft speed sensing (crank, cam, ...) by inductive pick-up
or DHE |
| |
| Options |
| |
• FlexRay 2.01 (Dual Channel
A+B)
• Ethernet 10/100 for XCP on Ethernet or Data aquisition units
|
| |
| CAN, CCP and XCP Functionality |
| |
• ECU Calibration & data
acquisition over CCP and XCP (up to 20 ECUs simultaneously)
• ECU Flash programming over CCP and XCP
• CAN data acquisition & bus monitoring |
| |
| Cost |
| |
• Entry level configurations
under 4,000 Euro after discount.
• Warranty period is 2 years, during which all S/W updates
are free (no maintenance fees charged).
• Special offer until 31-DEC-2011:
trade in your old Calibration- or instrumentation tool for
a 40% credit,
applies for any kind of tool,
systems of our competitors included.
|
| |
|
|
